确认插件已安装和能生效

此时,Xposed插件=普通的安卓apk,已安装到安卓手机中:

如何确认Xposed插件已安装成功

可以通过,去下面这些地方:

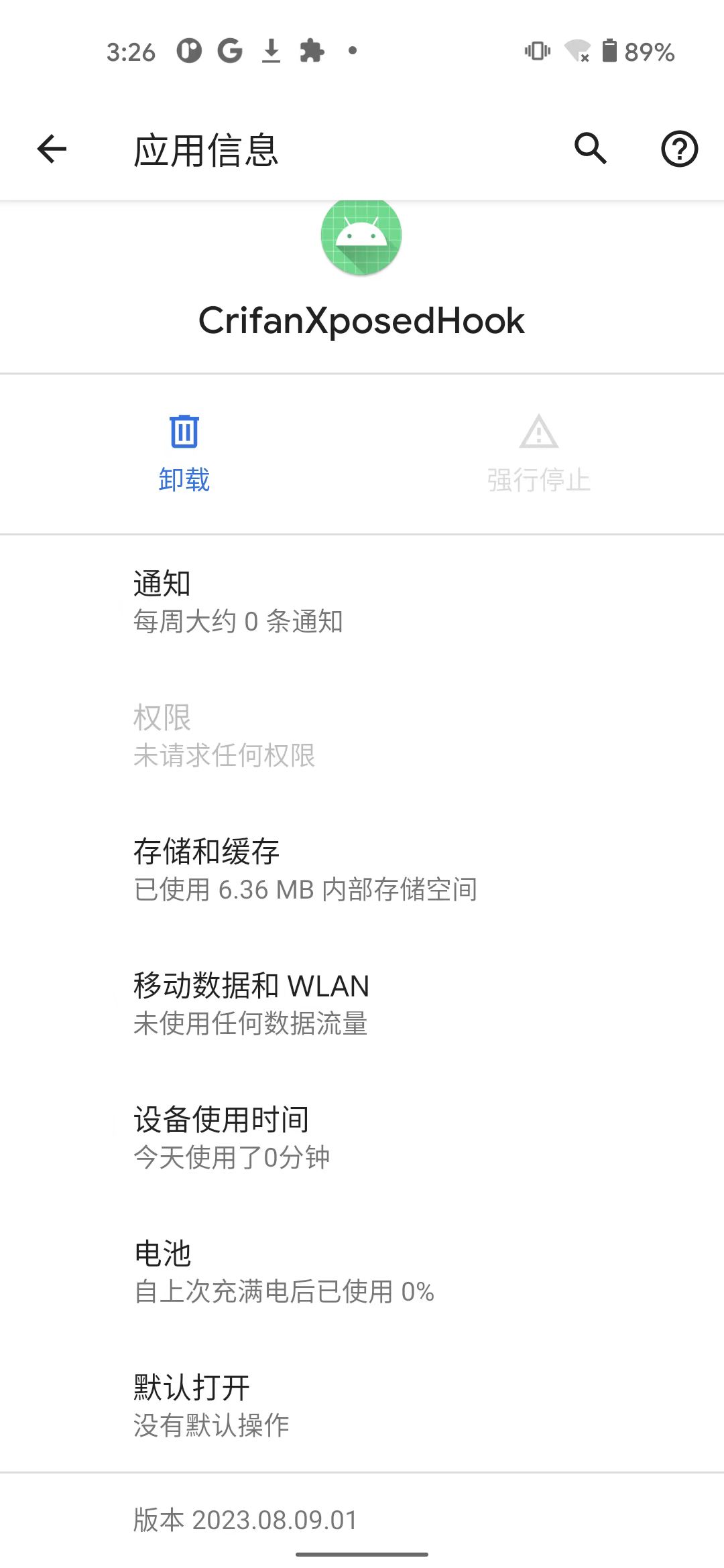

  • 安卓手机中设置中系统的应用列表中
    • android_app_list_show_xposed
  • Xposed框架中模块列表中
    • 此处EdXposed
      • edxposed_module_list_show
    • 对比:旧的Xposed Installer中的Xposed模块列表中,显示效果是这种
      • xposed_installer_show_module

能看到:自己的Xposed插件=普通安卓app,则说明:Xposed插件已成功安装

如何确认Xposed插件正常工作已生效

先开启插件

此处EdXposed中看到的自己的Xposed插件,右边有个开关,点击开启:

  • edxposed_xposed_module_enabled

注:开启插件时,底部会出现提示:EdXposed模块列表已更新,变更将在重启后生效

(根据提示,继续)再去重启EdXposed

  • 对比:旧的Xposed Installer中,新安装了Xposed插件后,需要重启Android手机才能使得插件生效

即可成功开启插件。

再确认插件是否正常工作

如何确认=测试Xposed插件已生效=真正正常工作了?

先去安卓手机Pixel5中操作:随便打开任意一些普通的安卓app即可

然后去找找,能看到输出对应hook的log日志,就说明插件正常生效了

问题变成:如何查看Xposed插件的hook的log日志

目前已知主要有2种方式:

  • Xposed框架中的日志
  • Android Studio中的LogCat

Xposed框架中的日志

对于此处的:EdXposed

EdXposed->日志->模块日志

edxposed_log_page

就可以看到hook的log日志:

edxposed_module_log_hooked_1

edxposed_module_log_hooked_2

其中的:

  • XposedHook Loaded app: com.google.android.apps.safetyhub
  • XposedHook Loaded app: com.tencent.mm
  • XposedHook Loaded app: com.google.android.gms
  • XposedHook Loaded app: org.meowcat.edxposed.manager

就表示,我们之前的Xposed的hook代码

XposedBridge.log("XposedHook Loaded app: " + lpparam.packageName);

真正工作了:能hook到对应的app了,输出对应的log了。

  • 导出全部日志

另外,点击右上角纸飞机的按钮,可以导出当前全部的.txt日志文件:

  • EdXposed_Modules_20230809_153813.txt
    EdXposed Log
    Powered by Log Catcher
    QQ support group: 855219808
    Telegram support group: @Code_Of_MeowCat
    Telegram channel: @EdXposed
    --------- beginning of information
    Manufacturer: Google
    Brand: google
    Device: redfin
    Product: redfin
    Model: Pixel 5
    Fingerprint: google/redfin/redfin:11/RQ3A.211001.001/7641976:user/release-keys
    ROM description: redfin-user 11 RQ3A.211001.001 7641976 release-keys
    Architecture: arm64-v8a
    Android build: RQ3A.211001.001
    Android version: 11
    Android sdk: 30
    EdXposed version: v0.5.2.2_4683-master
    EdXposed api: 93
    Riru version: v25.3.4.r399.84f7084 (399)
    Riru api: 25
    Magisk: 25.2:MAGISK (25200)
    --------- beginning of main
    --------- beginning of system
    --------- beginning of crash
    08-09 15:31:13.253 28102 28102 I EdXposed-Bridge: Loading modules from /data/app/~~lakNq25Fyxv5X7_V5iswfQ==/com.example.crifanxposedhook-nubXoNVT2XbwkrSmpZB8tQ==/base.apk
    08-09 15:31:13.692 28102 28102 I EdXposed-Bridge:   Loading class com.example.crifanxposedhook.XposedHook
    08-09 15:31:13.913 28102 28102 I EdXposed-Bridge: XposedHook Loaded app: com.google.android.apps.safetyhub
    08-09 15:31:21.951 28342 28342 I EdXposed-Bridge: Loading modules from /data/app/~~lakNq25Fyxv5X7_V5iswfQ==/com.example.crifanxposedhook-nubXoNVT2XbwkrSmpZB8tQ==/base.apk
    08-09 15:31:22.379 28342 28342 I EdXposed-Bridge:   Loading class com.example.crifanxposedhook.XposedHook
    08-09 15:31:22.571 28342 28342 I EdXposed-Bridge: XposedHook Loaded app: com.tencent.mm
    08-09 15:32:05.516 28102 28158 I EdXposed-Bridge: XposedHook Loaded app: com.google.android.gms
    08-09 15:37:02.714  1472  1472 I EdXposed-Bridge: Loading modules from /data/app/~~lakNq25Fyxv5X7_V5iswfQ==/com.example.crifanxposedhook-nubXoNVT2XbwkrSmpZB8tQ==/base.apk
    08-09 15:37:02.876  1472  1472 I EdXposed-Bridge:   Loading class com.example.crifanxposedhook.XposedHook
    08-09 15:37:02.911  1472  1472 I EdXposed-Bridge: XposedHook Loaded app: org.meowcat.edxposed.manager


对比:旧版Xposed:XPosed Installer中,看到的Xposed插件的hook的log日志是:

xposed_installer_show_hook_log

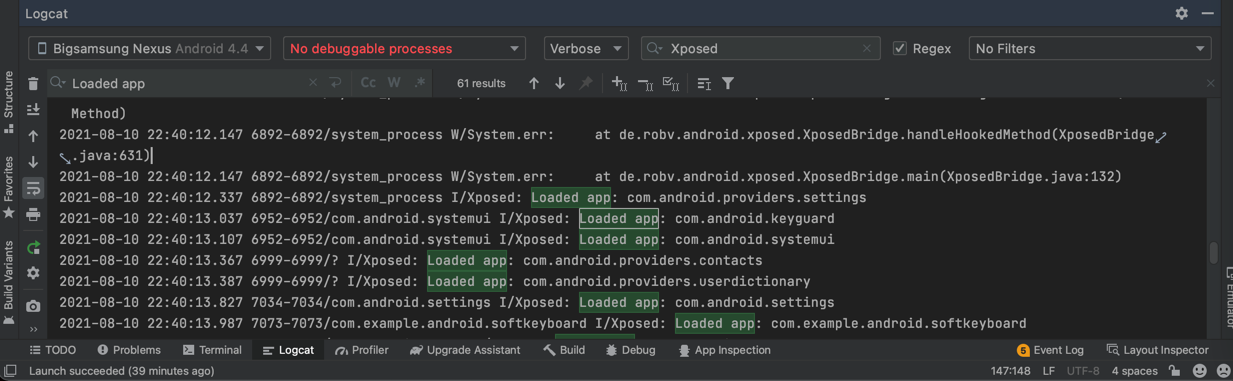

Android Studio中的LogCat

(之前旧版)AS->LogCat->filterXPosed,可以查看到hook日志:

as_logcat_filter_show_hook_log
