Error java.lang.ClassNotFoundException Didn't find class on path DexPathList zip file

情况1：类名错了

  • 现象

hook报错：

Error: java.lang.ClassNotFoundException: Didn't find class zzz.xxx on path: DexPathList[[zip file

即：找不到类名

  • 原因：类名写错了

  • 根本原因：

    • 之前Jadx反编译出的源码中的文件名sources/zzz/xxx.java中的xxx不是真正的类名
    • 而注释中renamed from: yyy才是真正的类名

  • 解决办法：把名字改为真正的Java的类名：yyy

情况2：类不在当前hook的二进制中

  • 背景

安卓逆向期间，去根据之前Logcat日志：

2023-08-31 10:26:23.911  6481-6481  AppButtonsPrefCtl       com.android.settings                 D  Stopping package com.wallpaper.hd.funny

找到了安卓内部的类：com.android.server.pm.Settings中的函数：createNewSetting，输出了上述的log

  • 现象

去Frida中用js代码：

    var SettingsCls = Java.use("com.android.server.pm.Settings")

去hook安卓内部的类：com.android.server.pm.Settings

frida -U -f com.android.settings -l hook_360Wallpaper.js

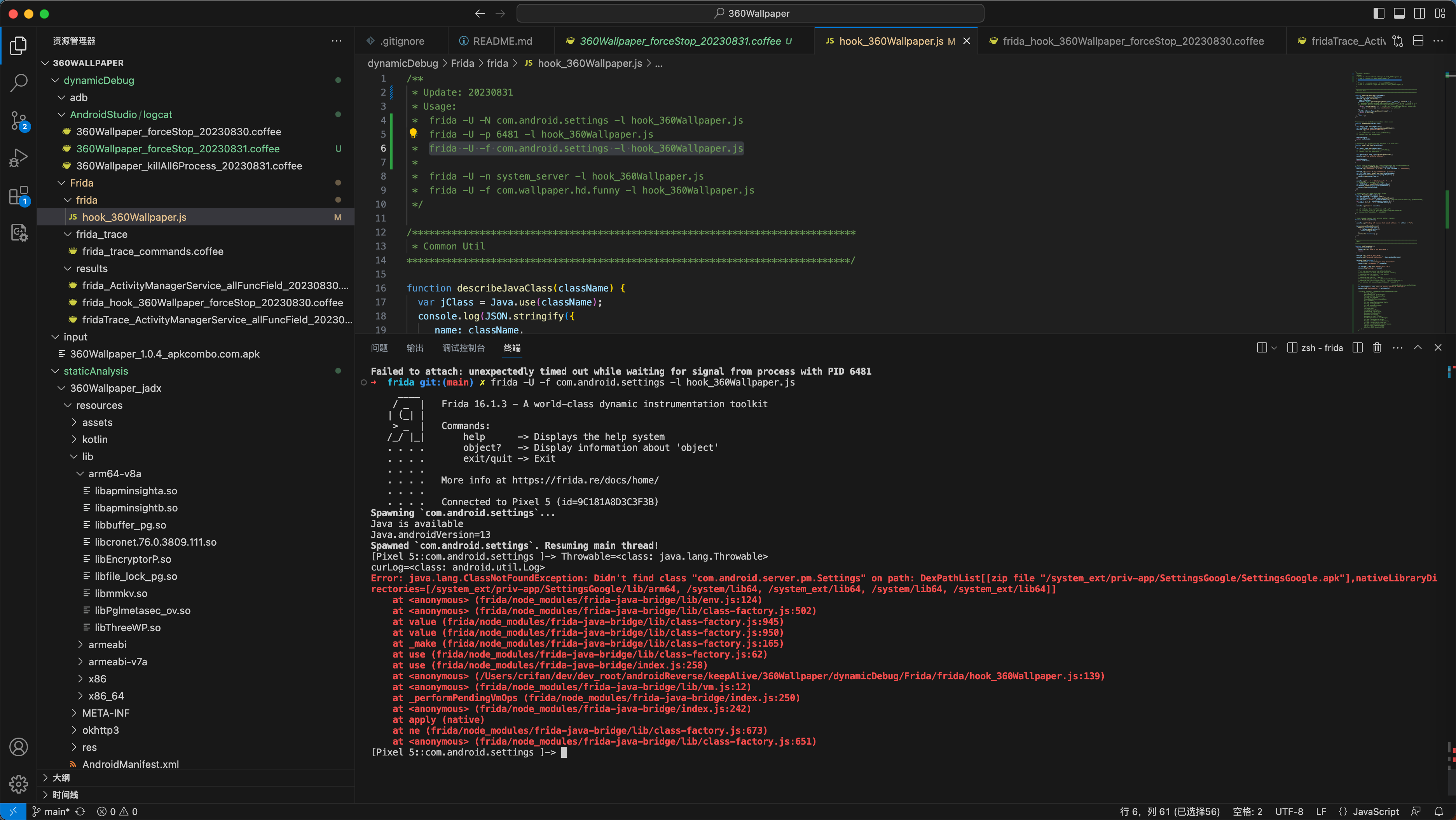

报错：

Error: java.lang.ClassNotFoundException: Didn't find class "com.android.server.pm.Settings" on path: DexPathList[[zip file "/system_ext/priv-app/SettingsGoogle/SettingsGoogle.apk"],nativeLibraryDirectories=[/system_ext/priv-app/SettingsGoogle/lib/arm64, /system/lib64, /system_ext/lib64, /system/lib64, /system_ext/lib64]]
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/env.js:124)
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/class-factory.js:502)
    at value (frida/node_modules/frida-java-bridge/lib/class-factory.js:945)
    at value (frida/node_modules/frida-java-bridge/lib/class-factory.js:950)
    at _make (frida/node_modules/frida-java-bridge/lib/class-factory.js:165)
    at use (frida/node_modules/frida-java-bridge/lib/class-factory.js:62)
    at use (frida/node_modules/frida-java-bridge/index.js:258)
    at <anonymous> (/Users/crifan/dev/dev_root/androidReverse/keepAlive/360Wallpaper/dynamicDebug/Frida/frida/hook_360Wallpaper.js:139)
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/vm.js:12)
    at _performPendingVmOps (frida/node_modules/frida-java-bridge/index.js:250)
    at <anonymous> (frida/node_modules/frida-java-bridge/index.js:242)
    at apply (native)
    at ne (frida/node_modules/frida-java-bridge/lib/class-factory.js:673)
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/class-factory.js:651)

classnotfoundexception_pm_settings

  • 原因
    • 此处安卓系统的app：设置，包名：com.android.settings
    • 好像没包含，此处输出的Stopping package的日志的代码：
    • 类 com.android.server.pm.Settings 的 函数createNewSetting
    • 因为是另外的二进制程序system_server才包含此函数
  • 解决办法

经过实测，换system_server去hook，即可找到。

  • 具体步骤
frida -U -n system_server -l hook_360Wallpaper.js

即可找到该类，正常输出：

SettingsCls=<class: com.android.server.pm.Settings>

情况3：不能用当前classLoader，要换classLoader才能找到

问题=现象

Frida的hook代码：

  static CronetUrlRequest() {
    var clsName_CronetUrlRequest = "org.chromium.net.impl.CronetUrlRequest"
    FridaAndroidUtil.printClassAllMethodsFields(clsName_CronetUrlRequest)

    var cls_CronetUrlRequest = Java.use(clsName_CronetUrlRequest)
    console.log("cls_CronetUrlRequest=" + cls_CronetUrlRequest)
...

但是报错，找不到类：

Error: java.lang.ClassNotFoundException

Error: java.lang.ClassNotFoundException: Didn't find class "CronetUrlRequest" on path: DexPathList[[zip file "/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/env.js:124)
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/class-factory.js:502)
    at value (frida/node_modules/frida-java-bridge/lib/class-factory.js:949)
    at value (frida/node_modules/frida-java-bridge/lib/class-factory.js:954)
    at _make (frida/node_modules/frida-java-bridge/lib/class-factory.js:165)
    at use (frida/node_modules/frida-java-bridge/lib/class-factory.js:62)
    at use (frida/node_modules/frida-java-bridge/index.js:256)
    at enumProperties (/Users/crifan/dev/dev_root/androidReverse/xxx/xxx/xxx_v250861022/dynamicDebug/frida/frida_js/hook_xxx.js:2335)
    at printClassAllMethodsFields (/Users/crifan/dev/dev_root/androidReverse/xxx/xxx/xxx_v250861022/dynamicDebug/frida/frida_js/hook_xxx.js:2353)
    at CronetUrlRequest (/Users/crifan/dev/dev_root/androidReverse/xxx/xxx/xxx_v250861022/dynamicDebug/frida/frida_js/hook_xxx.js:5886)
    at hookApp_AndroidJava (/Users/crifan/dev/dev_root/androidReverse/xxx/xxx/xxx_v250861022/dynamicDebug/frida/frida_js/hook_xxx.js:30797)
    at hookApp (/Users/crifan/dev/dev_root/androidReverse/xxx/xxx/xxx_v250861022/dynamicDebug/frida/frida_js/hook_xxx.js:30975)
    at <anonymous> (/Users/crifan/dev/dev_root/androidReverse/xxx/xxx/xxx_v250861022/dynamicDebug/frida/frida_js/hook_xxx.js:30995)
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/vm.js:12)
    at _performPendingVmOps (frida/node_modules/frida-java-bridge/index.js:248)
    at <anonymous> (frida/node_modules/frida-java-bridge/index.js:223)
    at <anonymous> (frida/node_modules/frida-java-bridge/lib/vm.js:12)
    at _performPendingVmOpsWhenReady (frida/node_modules/frida-java-bridge/index.js:242)
    at perform (frida/node_modules/frida-java-bridge/index.js:202)
    at hookAndroid (/Users/crifan/dev/dev_root/androidReverse/xxx/xxx/xxx_v250861022/dynamicDebug/frida/frida_js/hook_xxx.js:30998)
    at apply (native)
    at <anonymous> (frida/runtime/core.js:51)

原因

此处内部是用了另外的机制classLoader，去加载此类，导致此处默认的方式，找不到此类

解决办法

去换用别的特定的classLoader，即可正常加载该类，即可找到该类

具体代码

class FridaAndroidUtil{

  static findClassLoader(className){
    var foundClassLoader = null

    const classLoaders = Java.enumerateClassLoadersSync()
    // console.log("classLoaders=" + classLoaders + ", type=" + (typeof classLoaders))

    for (const loaderIdx in classLoaders) {
      var curClassLoader = classLoaders[loaderIdx]
      // var loaderClsName = FridaAndroidUtil.getJavaClassName(curClassLoader)
      // console.log(`[${loaderIdx}] loaderClsName=${loaderClsName}, curClassLoader=${curClassLoader}`)

      try {
        if (curClassLoader.findClass(className)){
          // var loaderStr = curClassLoader.toString()
          // console.log(`Found ${className} in loader ${loaderStr}`)
          // Found org.chromium.net.impl.CronetUrlRequest in loader dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]

          // if (loaderStr.includes(apkName)){
          //   // console.log(`Update current Java.classFactory.loader to ${loaderStr}`)
          //   Java.classFactory.loader = curClassLoader
          //   break
          // }

          console.log(`Found ${className} in loader ${curClassLoader}`)
          foundClassLoader = curClassLoader
          break
        }
      } catch (err){
        // console.log(`${err}`)
      }
    }

    console.log(`findClassLoader: className=${className} => foundClassLoader=${foundClassLoader}`)
    return foundClassLoader
  }

  static setClassLoder(newClassLoader){
    var oldClassLoader = Java.classFactory.loader
    console.log(`oldClassLoader=${oldClassLoader}`)
    Java.classFactory.loader = newClassLoader
    console.log(`Set ClassLoader to ${newClassLoader}`)
  }

  static updateClassLoader(className){
    var foundClassLoader = FridaAndroidUtil.findClassLoader(className)
    // console.log(`foundClassLoader=${foundClassLoader}`)
    if(foundClassLoader) {
      FridaAndroidUtil.setClassLoder(foundClassLoader)
    }
  }

}

static CronetUrlRequest() {
  var clsName_CronetUrlRequest = "org.chromium.net.impl.CronetUrlRequest"
  FridaAndroidUtil.updateClassLoader(clsName_CronetUrlRequest)
  // FridaAndroidUtil.printClassAllMethodsFields(clsName_CronetUrlRequest)

  var cls_CronetUrlRequest = Java.use(clsName_CronetUrlRequest)
  console.log("cls_CronetUrlRequest=" + cls_CronetUrlRequest)

  // FridaHookAndroidJava.CronetUrlRequest_origCode(cls_CronetUrlRequest)
}

日志：

Found org.chromium.net.impl.CronetUrlRequest in loader dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]
findClassLoader: className=org.chromium.net.impl.CronetUrlRequest => foundClassLoader=dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]
foundClassLoader=dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]
oldClassLoader=dalvik.system.PathClassLoader[DexPathList[[zip file "/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]
Set ClassLoader to dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]

附录日志

另外贴上，优化代码期间：

  static updateClassFactoryLoader(className, apkName){
    console.log(`updateClassFactoryLoader: className=${className}, apkName=${apkName}`)
    const classLoaders = Java.enumerateClassLoadersSync()
    console.log("classLoaders=" + classLoaders + ", type=" + (typeof classLoaders))

    for (const loaderIdx in classLoaders) {
      var curClassLoader = classLoaders[loaderIdx]
      var loaderClsName = FridaAndroidUtil.getJavaClassName(curClassLoader)
      console.log(`[${loaderIdx}] curClassLoader=${curClassLoader}, loaderClsName=${loaderClsName}`)

      try {
        if (curClassLoader.findClass(className)){
          var loaderStr = curClassLoader.toString()
          console.log(`Found ${className} in loader ${loaderStr}`)
          if (loaderStr.includes(apkName)){
            console.log(`Update current Java.classFactory.loader to ${loaderStr}`)
            Java.classFactory.loader = curClassLoader

            break
          }
        }
      } catch (err){
        // console.log(`${err}`)
      }
    }

    var clsName_CronetUrlRequest = "org.chromium.net.impl.CronetUrlRequest"
    FridaHookAndroidJava.updateClassFactoryLoader(clsName_CronetUrlRequest, "CronetDynamite")
    FridaAndroidUtil.printClassAllMethodsFields(clsName_CronetUrlRequest)
...

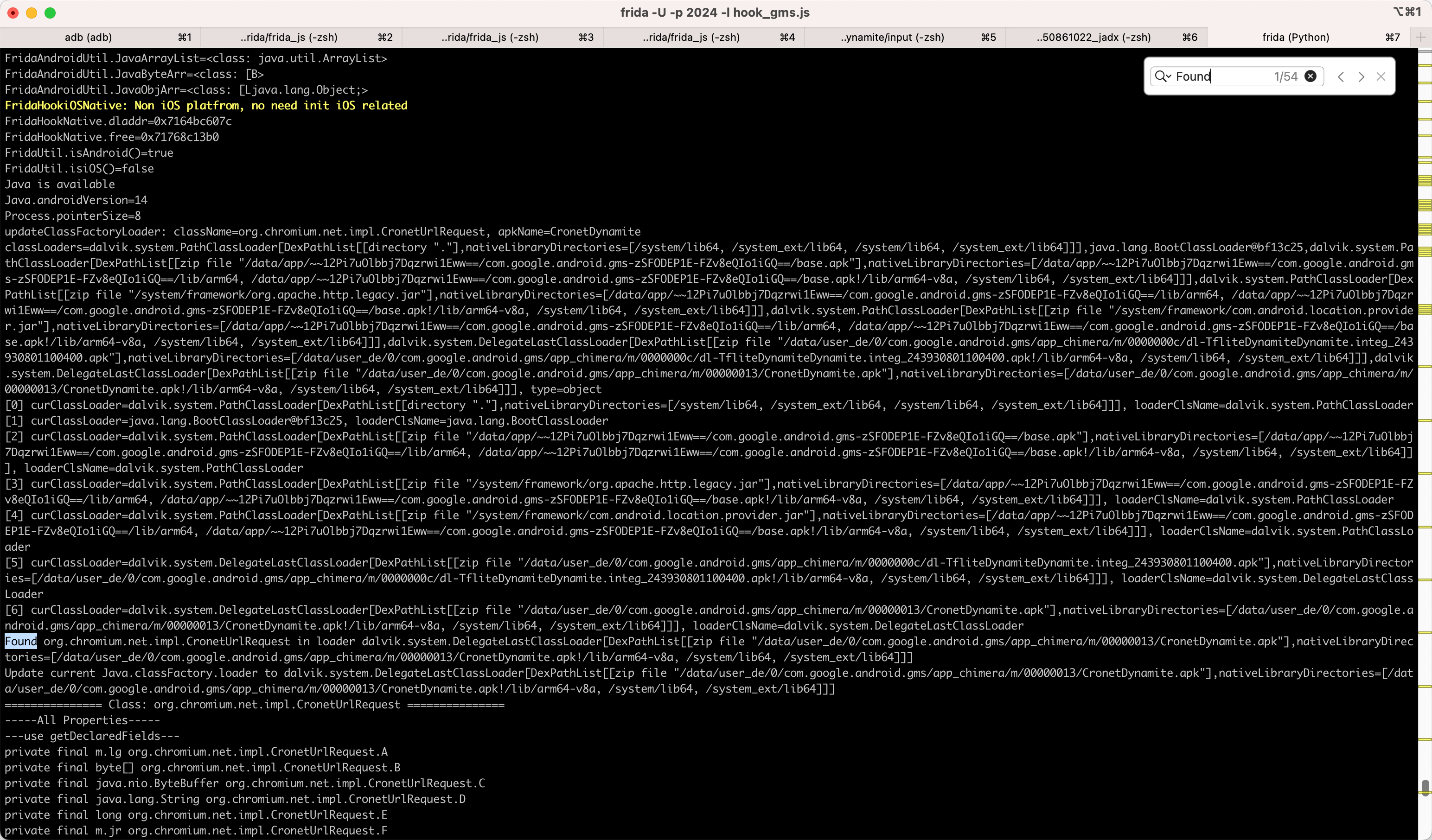

输出的效果：

updateClassFactoryLoader: className=org.chromium.net.impl.CronetUrlRequest, apkName=CronetDynamite
classLoaders=dalvik.system.PathClassLoader[DexPathList[[directory "."],nativeLibraryDirectories=[/system/lib64, /system_ext/lib64, /system/lib64, /system_ext/lib64]]],java.lang.BootClassLoader@bf13c25,dalvik.system.PathClassLoader[DexPathList[[zip file "/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]],dalvik.system.PathClassLoader[DexPathList[[zip file "/system/framework/org.apache.http.legacy.jar"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]],dalvik.system.PathClassLoader[DexPathList[[zip file "/system/framework/com.android.location.provider.jar"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]],dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/0000000c/dl-TfliteDynamiteDynamite.integ_243930801100400.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/0000000c/dl-TfliteDynamiteDynamite.integ_243930801100400.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]],dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]], type=object
[0] curClassLoader=dalvik.system.PathClassLoader[DexPathList[[directory "."],nativeLibraryDirectories=[/system/lib64, /system_ext/lib64, /system/lib64, /system_ext/lib64]]], loaderClsName=dalvik.system.PathClassLoader
[1] curClassLoader=java.lang.BootClassLoader@bf13c25, loaderClsName=java.lang.BootClassLoader
[2] curClassLoader=dalvik.system.PathClassLoader[DexPathList[[zip file "/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]], loaderClsName=dalvik.system.PathClassLoader
[3] curClassLoader=dalvik.system.PathClassLoader[DexPathList[[zip file "/system/framework/org.apache.http.legacy.jar"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]], loaderClsName=dalvik.system.PathClassLoader
[4] curClassLoader=dalvik.system.PathClassLoader[DexPathList[[zip file "/system/framework/com.android.location.provider.jar"],nativeLibraryDirectories=[/data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/lib/arm64, /data/app/~~12Pi7uOlbbj7Dqzrwi1Eww==/com.google.android.xxx-zSFODEP1E-FZv8eQIo1iGQ==/base.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]], loaderClsName=dalvik.system.PathClassLoader
[5] curClassLoader=dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/0000000c/dl-TfliteDynamiteDynamite.integ_243930801100400.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/0000000c/dl-TfliteDynamiteDynamite.integ_243930801100400.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]], loaderClsName=dalvik.system.DelegateLastClassLoader
[6] curClassLoader=dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]], loaderClsName=dalvik.system.DelegateLastClassLoader
Found org.chromium.net.impl.CronetUrlRequest in loader dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]
Update current Java.classFactory.loader to dalvik.system.DelegateLastClassLoader[DexPathList[[zip file "/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk"],nativeLibraryDirectories=[/data/user_de/0/com.google.android.xxx/app_chimera/m/00000013/CronetDynamite.apk!/lib/arm64-v8a, /system/lib64, /system_ext/lib64]]]

found_classloader_cronet

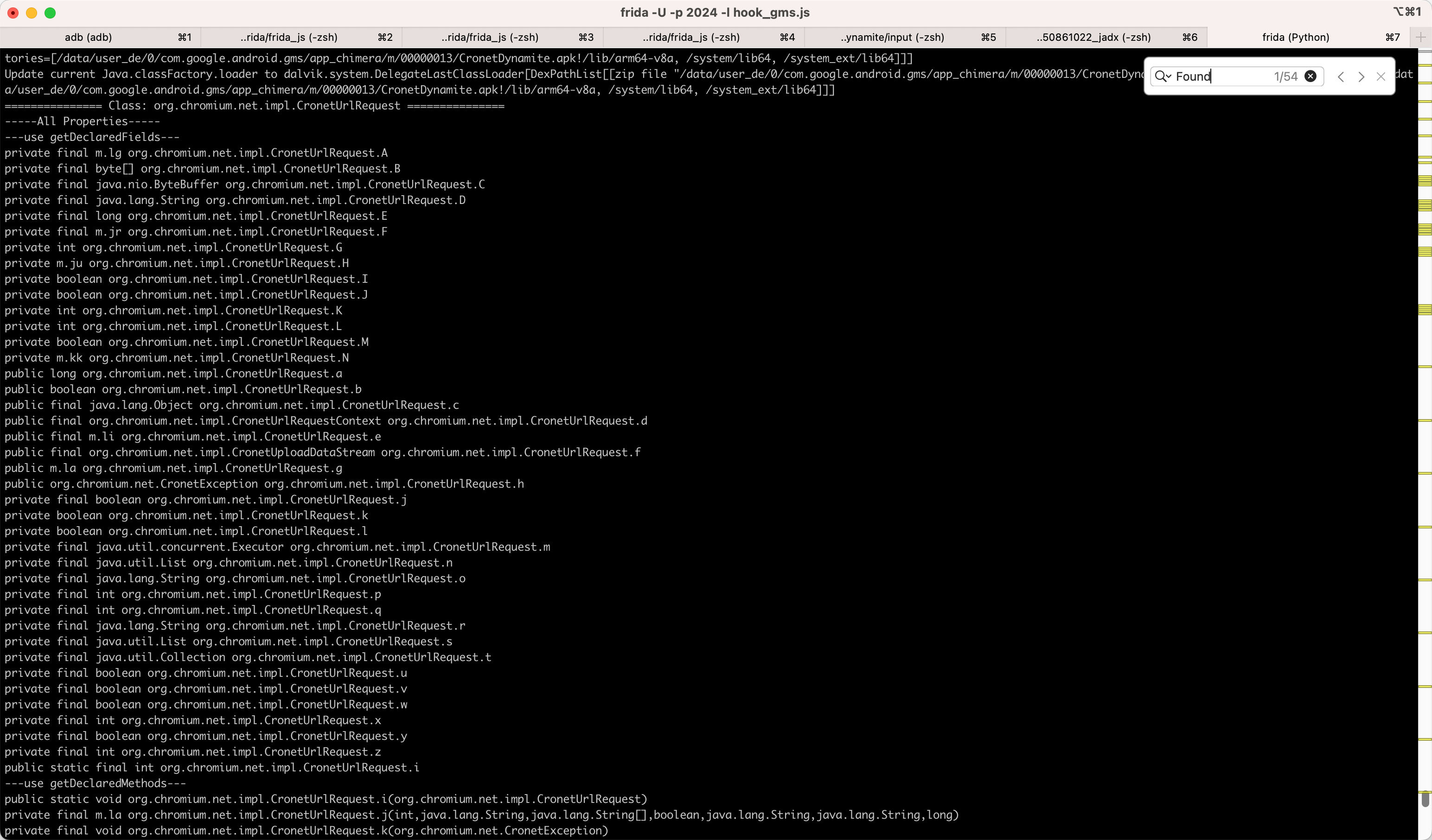

后续即可正常的，找到类之后，继续打印出类的属性和函数：

cronet_show_properties_func

进一步优化：工具类函数

最新整理出工具类函数：

心得

如果去hook其他类，也出现类似错误：

Error: java.lang.ClassNotFoundException: Didn't find class "xxx" on path: DexPathList ...

那么也可以尽快去试试：

用上面的

FridaAndroidUtil.updateClassLoader("xxx")

看看是否有效。
