逆向前后对比

逆向之前

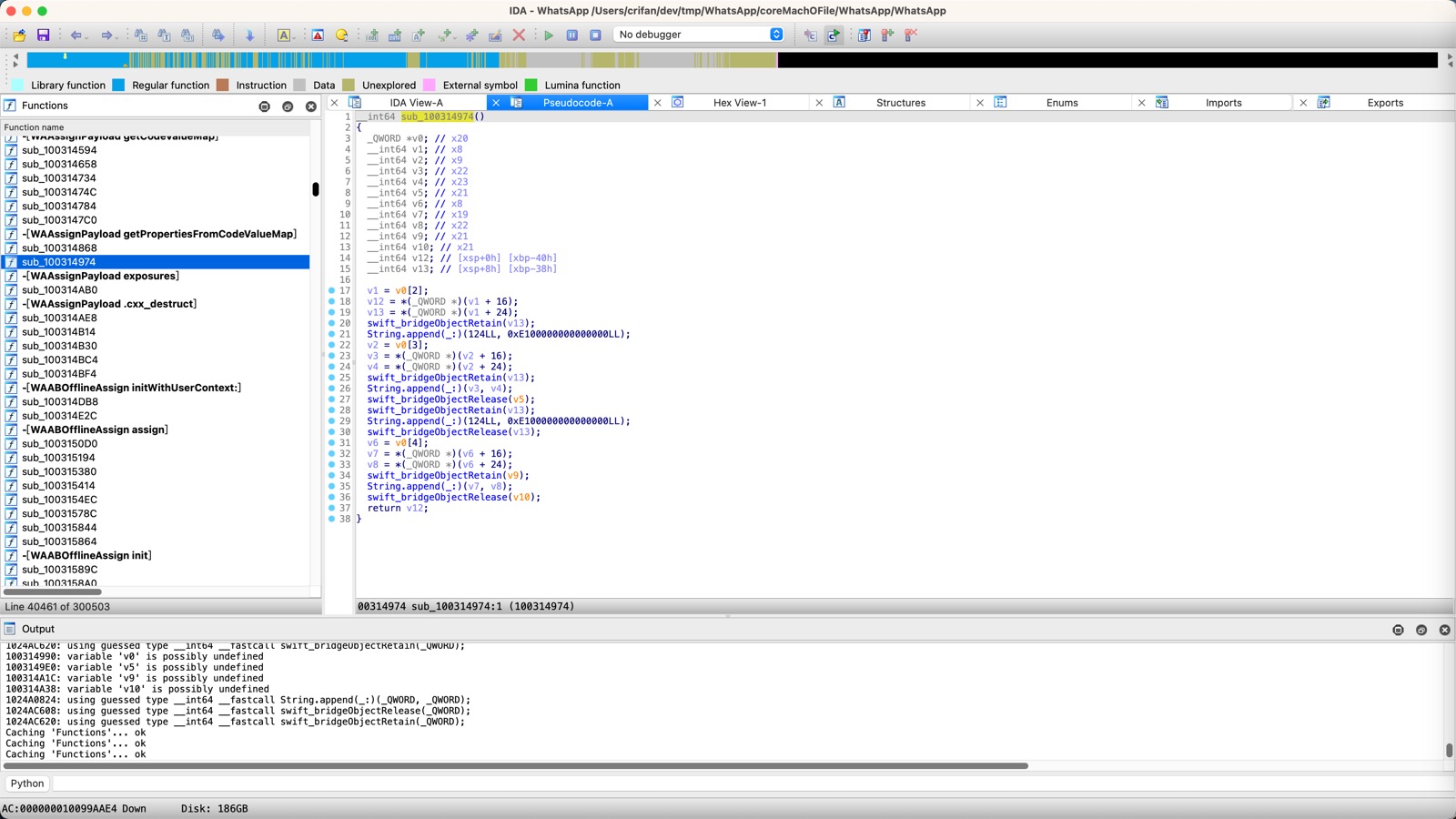

IDA伪代码

最初的IDA的相关伪代码，优化之前，是：

__int64 sub_100314974()
{
  _QWORD *v0; // x20
  __int64 v1; // x8
  __int64 v2; // x9
  __int64 v3; // x22
  __int64 v4; // x23
  __int64 v5; // x21
  __int64 v6; // x8
  __int64 v7; // x19
  __int64 v8; // x22
  __int64 v9; // x21
  __int64 v10; // x21
  __int64 v12; // [xsp+0h] [xbp-40h]
  __int64 v13; // [xsp+8h] [xbp-38h]


  v1 = v0[2];
  v12 = *(_QWORD *)(v1 + 16);
  v13 = *(_QWORD *)(v1 + 24);
  swift_bridgeObjectRetain(v13);
  String.append(_:)(124LL, 0xE100000000000000LL);
  v2 = v0[3];
  v3 = *(_QWORD *)(v2 + 16);
  v4 = *(_QWORD *)(v2 + 24);
  swift_bridgeObjectRetain(v13);
  String.append(_:)(v3, v4);
  swift_bridgeObjectRelease(v5);
  swift_bridgeObjectRetain(v13);
  String.append(_:)(124LL, 0xE100000000000000LL);
  swift_bridgeObjectRelease(v13);
  v6 = v0[4];
  v7 = *(_QWORD *)(v6 + 16);
  v8 = *(_QWORD *)(v6 + 24);
  swift_bridgeObjectRetain(v9);
  String.append(_:)(v7, v8);
  swift_bridgeObjectRelease(v10);
  return v12;
}

逆向后

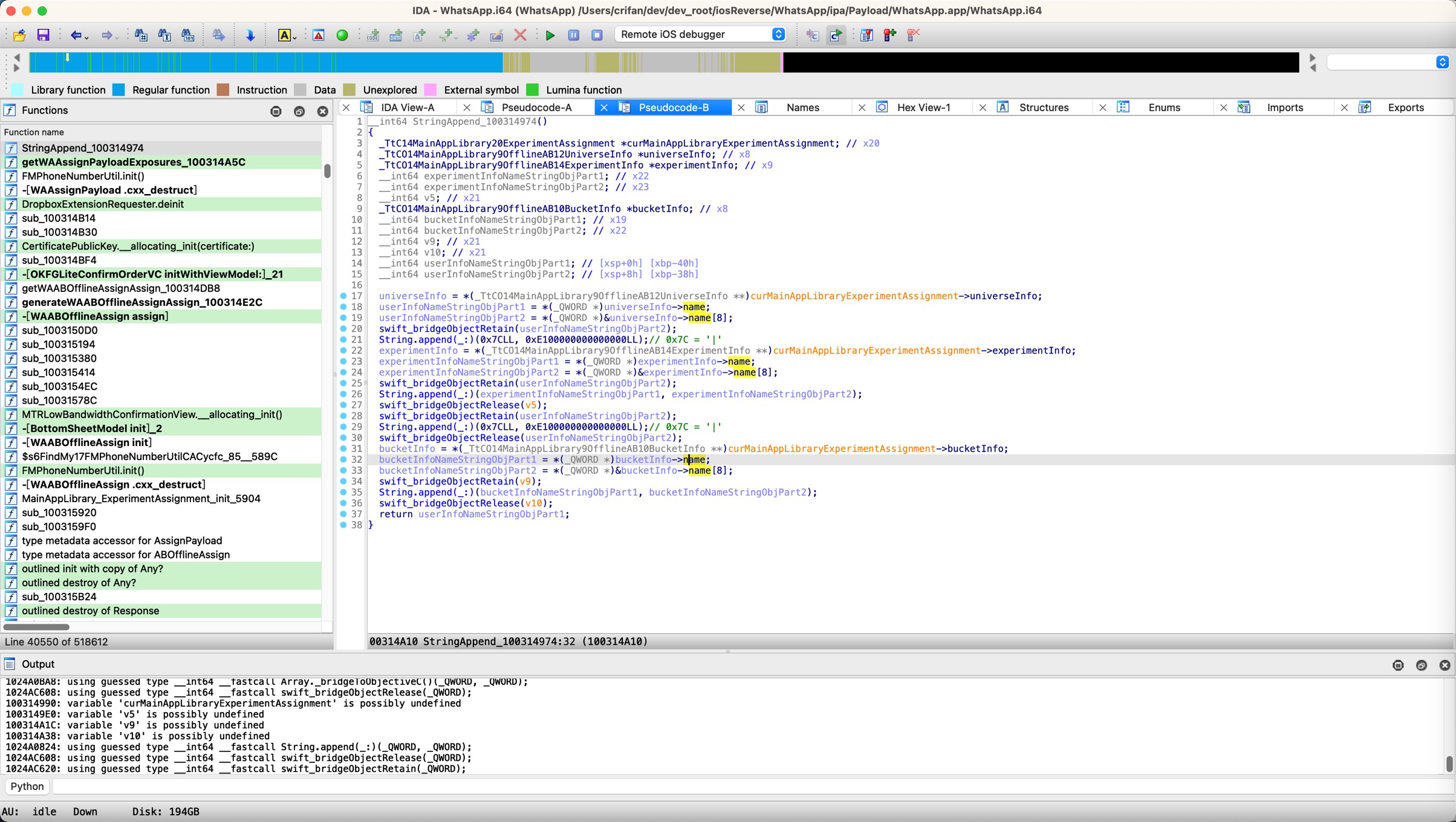

IDA伪代码

逆向后，经过分析，优化之后的：IDA伪代码：

__int64 StringAppend_100314974()
{
  _TtC14MainAppLibrary20ExperimentAssignment *curMainAppLibraryExperimentAssignment; // x20
  _TtCO14MainAppLibrary9OfflineAB12UniverseInfo *universeInfo; // x8
  _TtCO14MainAppLibrary9OfflineAB14ExperimentInfo *experimentInfo; // x9
  __int64 experimentInfoNameStringObjPart1; // x22
  __int64 experimentInfoNameStringObjPart2; // x23
  __int64 v5; // x21
  _TtCO14MainAppLibrary9OfflineAB10BucketInfo *bucketInfo; // x8
  __int64 bucketInfoNameStringObjPart1; // x19
  __int64 bucketInfoNameStringObjPart2; // x22
  __int64 v9; // x21
  __int64 v10; // x21
  __int64 userInfoNameStringObjPart1; // [xsp+0h] [xbp-40h]
  __int64 userInfoNameStringObjPart2; // [xsp+8h] [xbp-38h]


  universeInfo = *(_TtCO14MainAppLibrary9OfflineAB12UniverseInfo **)curMainAppLibraryExperimentAssignment->universeInfo;
  userInfoNameStringObjPart1 = *(_QWORD *)universeInfo->name;
  userInfoNameStringObjPart2 = *(_QWORD *)&universeInfo->name[8];
  swift_bridgeObjectRetain(userInfoNameStringObjPart2);
  String.append(_:)(0x7CLL, 0xE100000000000000LL);// 0x7C = '|'
  experimentInfo = *(_TtCO14MainAppLibrary9OfflineAB14ExperimentInfo **)curMainAppLibraryExperimentAssignment->experimentInfo;
  experimentInfoNameStringObjPart1 = *(_QWORD *)experimentInfo->name;
  experimentInfoNameStringObjPart2 = *(_QWORD *)&experimentInfo->name[8];
  swift_bridgeObjectRetain(userInfoNameStringObjPart2);
  String.append(_:)(experimentInfoNameStringObjPart1, experimentInfoNameStringObjPart2);
  swift_bridgeObjectRelease(v5);
  swift_bridgeObjectRetain(userInfoNameStringObjPart2);
  String.append(_:)(0x7CLL, 0xE100000000000000LL);// 0x7C = '|'
  swift_bridgeObjectRelease(userInfoNameStringObjPart2);
  bucketInfo = *(_TtCO14MainAppLibrary9OfflineAB10BucketInfo **)curMainAppLibraryExperimentAssignment->bucketInfo;
  bucketInfoNameStringObjPart1 = *(_QWORD *)bucketInfo->name;
  bucketInfoNameStringObjPart2 = *(_QWORD *)&bucketInfo->name[8];
  swift_bridgeObjectRetain(v9);
  String.append(_:)(bucketInfoNameStringObjPart1, bucketInfoNameStringObjPart2);
  swift_bridgeObjectRelease(v10);
  return userInfoNameStringObjPart1;
}

代码逻辑

经过分析和调试，以及代码优化后，就真正的，完全的，彻底的搞懂了代码逻辑。

然后就可以分析和整理出函数的逻辑了：

• StringAppend_100314974
  • 输入：MainAppLibrary.ExperimentAssignment的实例
  • 处理过程
    • 获取MainAppLibrary.ExperimentAssignment的universeInfo
      • 再获取universeInfo的name
        • 其是Swift的（Native）Large String
    • 去拼接上："|"
      • 其是个Swift的small string
    • 继续类似逻辑
      • 获取MainAppLibrary.ExperimentAssignment的experimentInfo
        • 再获取experimentInfo的name
          • 其是Swift的Large String
      • 拼接"|"
      • 获取MainAppLibrary.ExperimentAssignment的bucketInfo
        • 再获取bucketInfo的name
          • 其是Swift的Small String
    • 最终得到拼接后的最终的字符串
  • 处理逻辑概述：用universeInfo、experimentInfo、bucketInfo的name，中间加上|，拼接后的字符串
  • 输出=返回值：
    • 最终拼接后的字符串
    • 举例
      • "dummy_aa_offline_rid_universe_ios|dummy_aa_offline_rid_experiment_ios|control"

如此，实现了：
