DyldExtractor相关心得

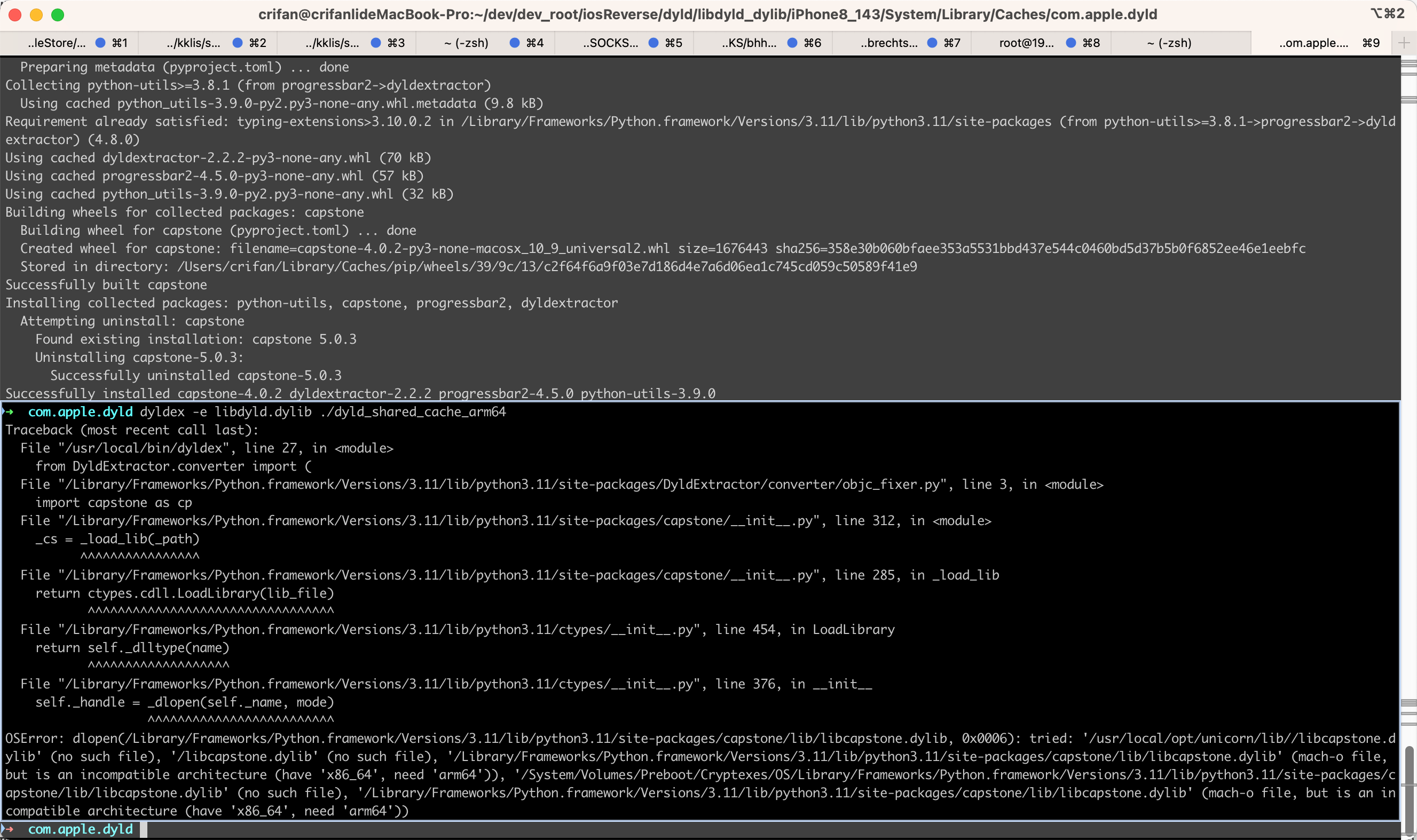

OSError dlopen mach-o file, but is an incompatible architecture (have 'x86_64', need 'arm64')

此处：

dyldex -e libdyld.dylib ./dyld_shared_cache_arm64

报错：

➜  com.apple.dyld dyldex -e libdyld.dylib ./dyld_shared_cache_arm64
Traceback (most recent call last):
  File "/usr/local/bin/dyldex", line 27, in <module>
    from DyldExtractor.converter import (
  File "/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/DyldExtractor/converter/objc_fixer.py", line 3, in <module>
    import capstone as cp
  File "/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/capstone/__init__.py", line 312, in <module>
    _cs = _load_lib(_path)
          ^^^^^^^^^^^^^^^^
  File "/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/capstone/__init__.py", line 285, in _load_lib
    return ctypes.cdll.LoadLibrary(lib_file)
           ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
  File "/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/ctypes/__init__.py", line 454, in LoadLibrary
    return self._dlltype(name)
           ^^^^^^^^^^^^^^^^^^^
  File "/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/ctypes/__init__.py", line 376, in __init__
    self._handle = _dlopen(self._name, mode)
                   ^^^^^^^^^^^^^^^^^^^^^^^^^
OSError: dlopen(/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/capstone/lib/libcapstone.dylib, 0x0006): tried: '/usr/local/opt/unicorn/lib//libcapstone.dylib' (no such file), '/libcapstone.dylib' (no such file), '/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/capstone/lib/libcapstone.dylib' (mach-o file, but is an incompatible architecture (have 'x86_64', need 'arm64')), '/System/Volumes/Preboot/Cryptexes/OS/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/capstone/lib/libcapstone.dylib' (no such file), '/Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/capstone/lib/libcapstone.dylib' (mach-o file, but is an incompatible architecture (have 'x86_64', need 'arm64'))

原因：

此处所依赖的capstone的lib：

但是架构不匹配：

• /Library/Frameworks/Python.framework/Versions/3.11/lib/python3.11/site-packages/capstone/lib/libcapstone.dylib
  • 实际是：x86_64
    • 希望是：arm64

解决办法：

想办法，重新安装个arm64的capstone，对应lib就是arm64的了

具体步骤：

（1）卸载之前的

python3.11 -m pip uninstall capstone

（2）重新安装新的arm64的

arch -arm64 python3.11 -m pip install capstone

即可。

ModuleNotFoundError No module named distutils

运行：

dyldex -e libdyld.dylib ./dyld_shared_cache_arm64

报错：

  File "/usr/local/bin/dyldex", line 25, in <module>
    from DyldExtractor.converter import (
    ...<5 lines>...
    )
  File "/usr/local/lib/python3.13/site-packages/DyldExtractor/converter/objc_fixer.py", line 3, in <module>
    import capstone as cp
  File "/usr/local/lib/python3.13/site-packages/capstone/__init__.py", line 266, in <module>
    import distutils.sysconfig
ModuleNotFoundError: No module named 'distutils'

原因：

此次所用的Python是，最新版:Python 3.13

而Python 3.12之后，就移除了库：distutils，从而导致此处找不到库

解决办法：

有2种思路：

• 改脚本（/usr/local/bin/dyldex）代码
• 换旧版本Python

此处用第二种：换旧版本Python

此处另外已安装了旧版本Python 3.11

继续去：

重新给此处已有的Python3.11安装库：

python3.11 -m pip install dyldextractor

然后告诉脚本用此特定的版本Python 3.11

需要改动脚本：

• /usr/local/bin/dyldex

#!/usr/local/bin/python3.11

# old: !/usr/local/opt/python@3.13/bin/python3.13

import progressbar
...
